Innovative Sealing Strips Transform Heat Exchanger Manufacturing

In the dynamic arena of heat exchanger production, the selection of sealing strips is crucial for the durability and performance of the end product. While traditional manufacturing has utilized sealing strips crafted from 3003 aluminum for their inherent mechanical robustness and resistance to corrosion, the introduction of four novel sealing strip types—A, B, C, and D—marks a significant progression, aiming to resolve past design flaws and align with varied manufacturing requisites.

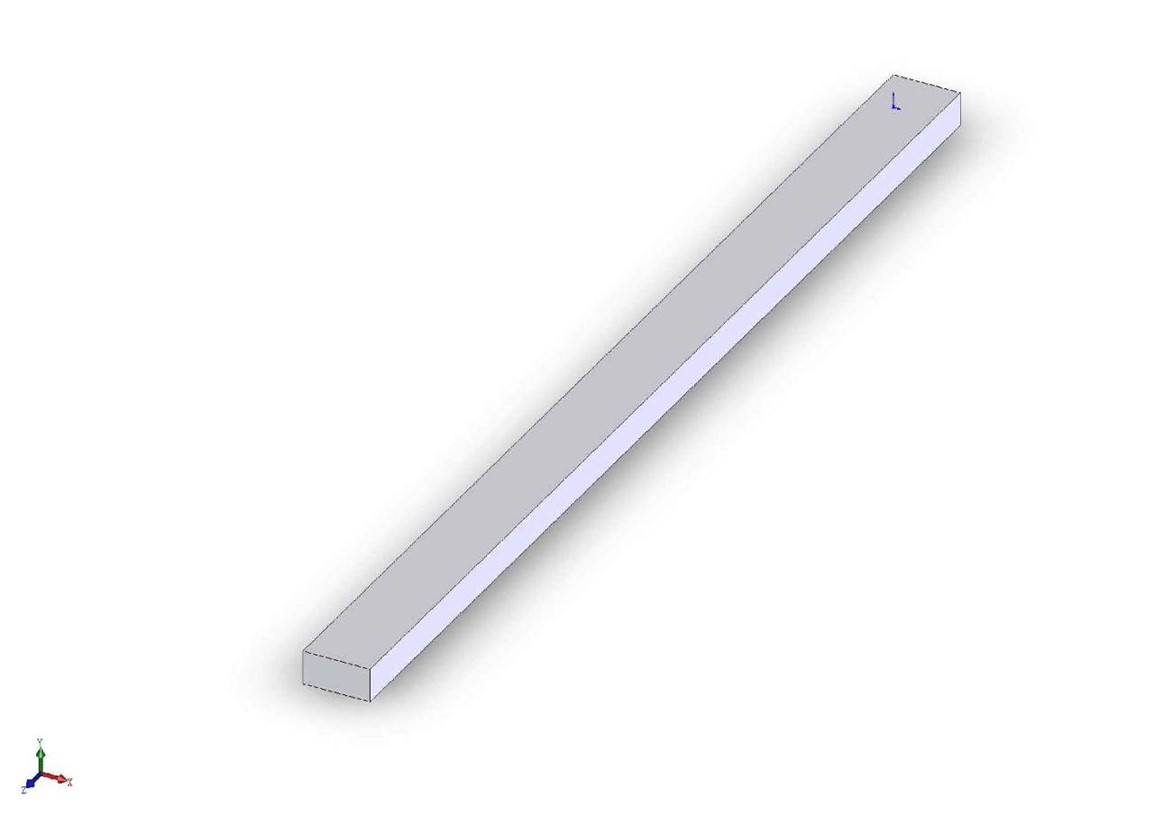

Type A Sealing Strips

Cross-Sectional Profile: Rectangular
Fabrication Method: These are extruded and shaped from 3003 aluminum rods.
Usage: This type has seen a decline in contemporary manufacturing.
Structural Characteristics: Sports a straightforward rectangular profile.
Drawbacks and Enhancements: Type A's major downside surfaces during installation, when the fin bases might compress under the strip, initiating excessive brazing voids. Such defects can lead to leakage, thus nudging the industry towards more sophisticated configurations.

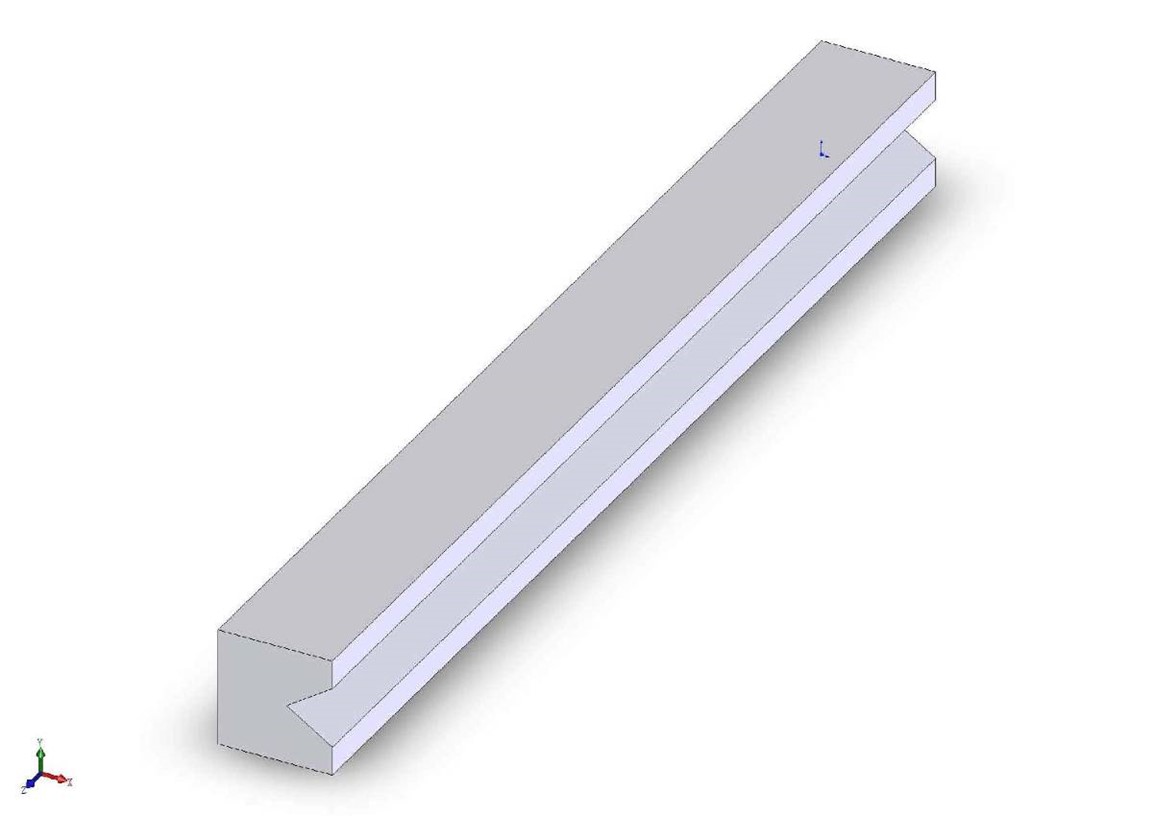

Type B Sealing Strips

Cross-Sectional Profile: Dovetail
Fabrication Method: These are precisely extruded and drawn from 3003 aluminum.
Usage: Engineered with salt bath brazing in mind.
Structural Characteristics: The pronounced notch is designed for efficient salt solution drainage, thus boosting brazing productivity.
Status and Enhancements: Although advantageous for salt bath brazing, these strips offer no added value for vacuum brazing pursuits, leading to a decline in their popularity for such procedures.

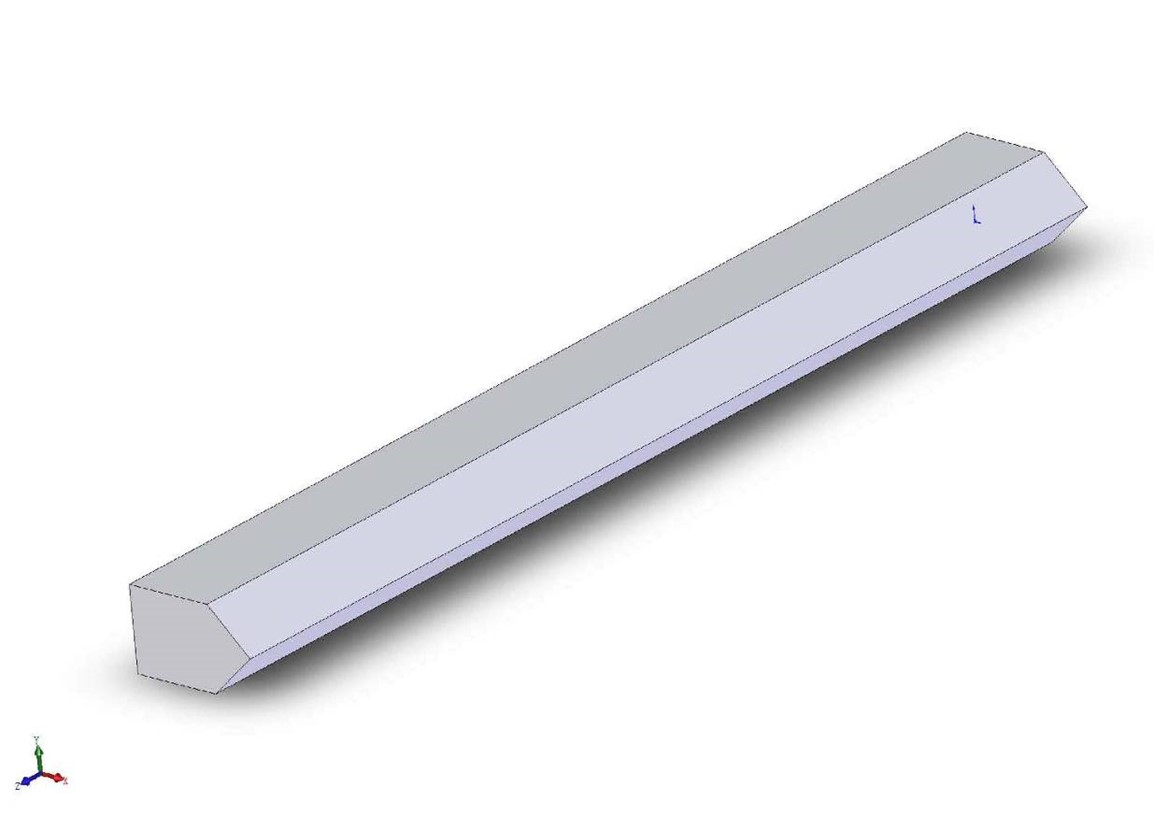

Type C Sealing Strips

Cross-Sectional Profile: One side is honed, deriving from the Type A design.
Fabrication Method: These are precision-extruded using 3003 aluminum.
Usage: Most suitable for the lateral sections of internal channels.
Structural Characteristics: The honed edge thwarts the fin bases from sliding under the strip in the course of assembly, guaranteeing uniform brazing spaces and a steadfast seal.
Benefits: Type C strips adeptly tackle the leakage woes of Type A, thus standing out as a dependable option for internal channel sealing.

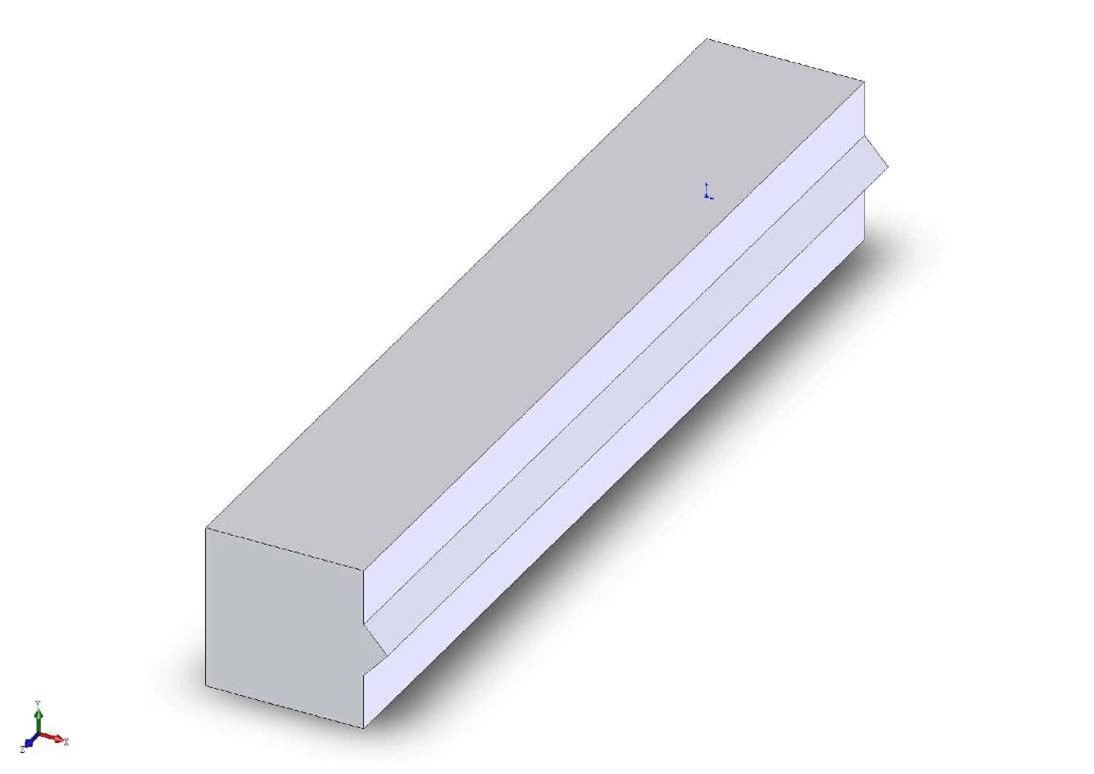

Type D Sealing Strips

Cross-Sectional Profile: Features a subtle, central protrusion on one side of the Type A design.
Fabrication Method: These are extruded with high precision from 3003 aluminum.
Usage: Favored for the flanking areas of internal channels.
Structural Characteristics: The central protrusion serves a similar purpose to Type C, preventing the fin bases from being pressed under and ensuring optimal brazing clearances.
Benefits: Type D strips are on par with Type C in preventing leakage, but their distinctive design may offer superior performance in certain contexts.

Process and Material Insights

Every sealing strip described is wrought from 3003 aluminum via meticulous extruding and drawing, leveraging the metal's notable corrosion resistance and sufficient strength. This choice material is instrumental to the strip's functionality. The fabrication through extrusion allows for exacting contouring and a flawless finish, reducing assembly and brazing hiccups.

Implementation Considerations

Deciding on a sealing strip is informed by the particular brazing method and operative environment:

• Type A: Mainly obsolete due to leak proneness.
• Type B: Chosen for salt bath brazing, yet its prominence is waning in vacuum brazing.
• Type C and D: The go-to for internal channels, courtesy of their impressive leakage prevention and consistent sealing quality.

Forecasting Trends

With the ever-progressing brazing techniques, we anticipate future iterations in sealing strip materials and geometries to push performance boundaries, accommodating more intricate setups and exacting performance stipulations.

In scrutinizing these sealing strips, one can surmise that every variant is designed with a specific brazing process and application in mind. Judicious selection and application can thus amplify brazing excellence and extend the lifespan of heat exchangers, accentuating the pivotal impact of cutting-edge sealing technologies in contemporary manufacturing.
